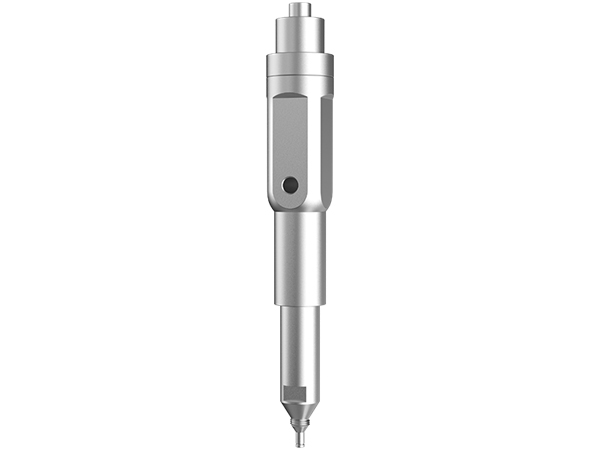

Apex Large [L] Series

Our Apex Large (L) Series have larger volume than Apex Fine Series in working same applications and are applying for larger dispensing works & transferring the pumping materials.
Especially Rotor and the middle shaft are connected a special Flexible shaft and The connections between the pump & the drive are assembled with clamp
That way it can be easily assembled or disassembed

Workings

Bonding, Optical Bonding, Glob Top Potting, Under Filling, Micro Dispensing, Encapsulation, Dan & Fill, Conformal Coating, etc

For

Electronic, E-Mobility, Automobile, Aerospace, Pharmaceutical, LED/LCD/OLED Lighting, Medical, Biotechnology, Cosmetic, Food, 3D Printing, Solar, Battery, General Industries etc.

Specifications of L Series

Dispensing Volume : 4.0 ~ 50 cc/rev
Discharge Pressure : 20 Bar
Dosing Accuracy : ±1%
Max. RPM : 150
Material : Stainless Steel and Aluminum
Stator Material : Hi-pro, Hi-act
Sealing : Triple arranged Special Seals
